8B Series - Isolated Analog Signal Conditioners

Main features

±0.05% Accuracy (Typical)
±0.02% Linearity
1500Vrms Transformer Isolation & up to
240Vrms Field-side Protection
ANSI/IEEE C37.90.1 Transient Protection
5V Power (30mA Typical)
5-Pole Low-Pass Filtering
Up to 120dB CMR
70dB NMR at 60Hz
-40°C to +85°C Operating Temperature
CE Compliant
C-UL-US Listed (Class I, Division 2, Groups A, B, C, D)
ATEX Compliance Pending
Manufactured per RoHS Directive 2011/65/EU

Option

Clear

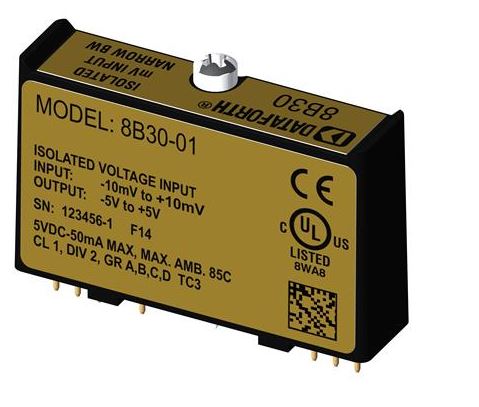

Dataforth’s new SensorLex® 8B line of isolated analog signal conditioners provides 19 family groups with a total of 123 models that interface to a wide variety of voltage, current, temperature, position, frequency, and strain measuring devices. Housed in a package only one-fifth the size of competing products, the 8B offers fully functional Instrument Class® performance with superior specifications such as ±0.05% accuracy, ±0.02% linearity, 5-pole filtering, 1500Vrms isolation, low output noise and much more.

	8B30 - Millivoltage Input 8B Module, 3Hz Bandwidth 8B
	8B31 - Voltage Input Module, 3Hz Bandwidth 8B
	8B32 - Current Input Module, 3Hz Bandwidth 8B
	8B33 - True RMS Input Module 8B
	8B34 - Linearised 2- or 3-Wire RTD Input 8B Module, 3Hz Bandwidth 8B
	8B35 - Linearised 4-Wire RTD Input Module, 3Hz Bandwidth 8B
	8B36 - Potentiometer Input Module, 3Hz Bandwidth 8B
	8B37 - Thermocouple Input Modules 8B
	8B38 - Strain Gauge Signal Conditioning Module, 3Hz or 8kHz Bandwidth 8B
	8B39 - Current Output Module, 100Hz Bandwidth 8B
	8B40 - Millivoltage Input Module, 1kHz Bandwidth 8B
	8B41 - Voltage Input Module, 1kHz Bandwidth 8B
	8B42 - 2-Wire Transmitter Interface, 100Hz Bandwidth 8B
	8B43 - DC LVDT Input, 1KHz Bandwidth 8B
	8B45 - Frequency Input Modules 8B
	8B47 - Linearized Thermocouple Input Module, 3Hz Bandwidth 8B
	8B49 - Voltage Output Modules 8B
	8B50 - Millivoltage Input Module, 20kHz Bandwidth 8B
	8B51 - Voltage Input Module, 20kHz Bandwidth 8B

8B Series	Isolated Analog Signal Conditioners
8B30 Serie	Millivoltage Input 8B Module, 3Hz Bandwidth
8B31 Serie	Voltage Input Module, 3Hz Bandwidth
8B32 Serie	Current Input Module, 3Hz Bandwidth
8B33 Serie	True RMS Input Module
8B34 Serie	Linearised 2- or 3-Wire RTD Input 8B Module, 3Hz Bandwidth
8B35 Serie	Linearised 4-Wire RTD Input Module, 3Hz Bandwidth
8B36 Serie	Potentiometer Input Module, 3Hz Bandwidth
8B37 Serie	Thermocouple Input Modules
8B38 Serie	Strain Gauge Signal Conditioning Module, 3Hz or 8kHz Bandwidth
8B39 Serie	Current Output Module, 100Hz Bandwidth
8B40 Serie	Millivoltage Input Module, 1kHz Bandwidth
8B41 Serie	Voltage Input Module, 1kHz Bandwidth
8B42 Serie	2-Wire Transmitter Interface, 100Hz Bandwidth
8B43 Serie	DC LVDT Input, 1KHz Bandwidth
8B45 Serie	Frequency Input Modules
8B47 Serie	Linearized Thermocouple Input Module, 3Hz Bandwidth
8B49 Serie	Voltage Output Modules
8B50 Serie	Millivoltage Input Module, 20kHz Bandwidth
8B51 Serie	Voltage Input Module, 20kHz Bandwidth
