Digitizers at least 14 bits
12-bit digitizer instead of an 8-bit digitizer to acquire a waveform provide greater fidelity. With an 8-bit digitizer, 256 voltage levels are available to define the wave shape when 14-bits digitizers offer 16384 distinct voltage levels, a great improvement in resolution
-

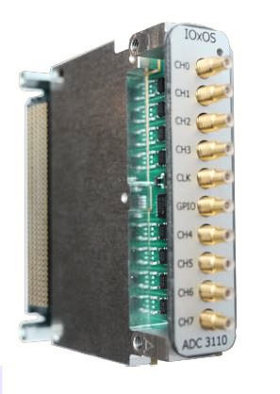

ADC_3110
FMC Eight Channel 16-bit Digitizer
- Eight (8) channels 16-bit/250Msps ADC
- Single width FMC VITA
-
ADC_3117
FMC Dual 16-bit DAC and Twenty 16-bit ADC
- Single width FMC VITA 57.1-2008:
- HPC 400 pins
- Single width FMC VITA 57.1-2008:
-
ADC_3210
FMC Eight Channel 14-bit Digitizer
- Eight/Four (8/4) channels
- 14-bit @ 1’300/625 Msps with
- Eight/Four (8/4) channels
-
DAC_3113
FMC Dual 16-bit DAC and Dual 16-bit ADC
- Single width FMC VITA 57.1-2008
- HPC 400 pins
- Single width FMC VITA 57.1-2008
-
IFC_1420
MTCA.4 High performance digitizer and generator
- MTCA.4 mid-size double-width AMC form factor
- NXP QorIQ T2081
-
PA72
Generation and capture PXI platform
- Flexible analog signal generation and capture platform
- Two daughter
-
PX14400A
400 MS/s, 14-Bit, PCI Express high speed data acquisition board
- 2 AC-Coupled Analog Channels at up to 400 MHz
-
PX14400D
400 MS/s, 14-Bit PCI Express high speed data acquisition board
- 2 DC-Coupled Analog Channels at up to 400 MHz
-

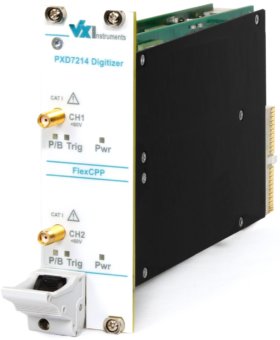

PXD(e)721x
PXI(e) High Voltage Waveform Digitizer 100MS/s 16-Bit
- Up to 2 independent channels (floating isolated inputs)
- Input
-

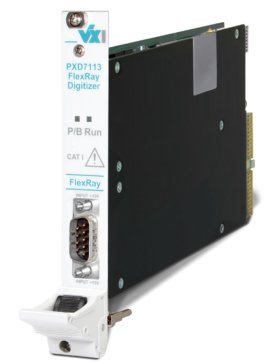

PXD7113
PXI(e) Waveform Digitizer 100MS/s 16-Bit
- Designed for FlexRay measurements
- 100 MS/s with 16 Bit
-
PXD731x
PXI High Voltage Waveform Digitizer 100MS/s 16-Bit
- Highest on market available input voltage range with up
-

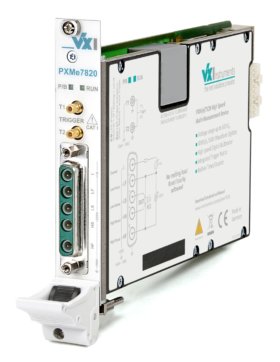

PXM(e)7820
PXI(e) High Speed Multi-Measurement-Device
- High voltage range with up to 500 V pp
